First GPIO Success
New project: assembling a simplified, PDP8-like console panel,
usable as frontend to simh-pdp8. Today, I attached a nice, clunky

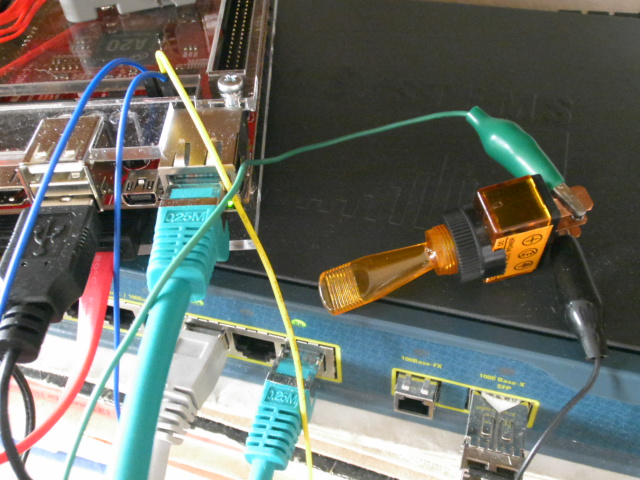

on/off switch to one of the GPIO pins of alexis, my
OlinuXino-A20 board:
A first naive attempt, just inserting the switch between GPIO pin and GND, yielded just flaky results, following the hints and this design from http://elinux.org/RPi_GPIO_Interface_Circuits
made things work:
# while true ; do sleep 1; cat /sys/class/gpio/gpio64_pg0/value ; done
0
0
0
0
0
0 (flip)
1
1
1
1
1
1 (flop)
0
0
0
0
0
^C

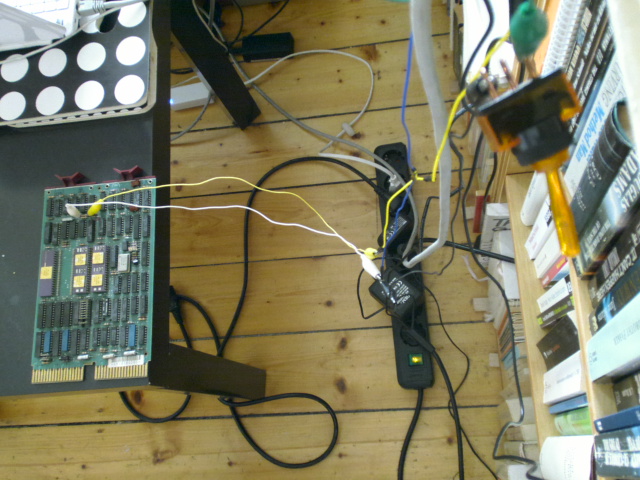

Because I wasn't able to find my mixed bag of resistors, I abused my PDP11 processor board and located an r15k there:
Thanks to Doom for kindly guiding me around with this.
